Casta WAVE® Joint

STEEL ARMOURED JOINT ELECTROPLATED

Combines a narrow top plate and a distinctive triple curve design, for impact-free joint protection that’s easy to install.

  • Eliminates joint impact, one of the major causes of noise and whole-body vibration that MHE operators are subjected to.
  • Ideal for, Cold Stores, Distribution Centres, Food manufacturing, General Warehousing and Heavy Industrial floors.
How it works

CASTA WAVE® – STEEL ARMOURED JOINT ELECTROPLATED

PERMABAN WAVE® combines a narrow top plate and a distinctive triple curve design, for impact-free joint protection that’s easy to install.

Its three sine wave shapes mean there are no straight edges, so materials handling equipment can flow smoothly across the joint in any direction.

The extension plate means installers can easily choose the correct joint height on site and use any excess stock on the next job. Casta Wave Joint is suitable for use with pallet trucks, and front and lateral stacker trucks. Ideal for cold
stores, where low temperatures will cause extreme concrete contraction, and thus larger gap sizes.

Permaban joints allow design and construction of floor slabs in conformance with BS EN 1991-1-1:2002 & BS EN 1992-1-1:2004 and to best practice as set out in TR34 4th edition.

Permaban Joint complies with the Construction Products Regulation (Regulation (EU) No. 305/2011), hold appropriate CE marking and are manufactured under the disciplines of ISO 9001:2015.

key benefits
  • Heavy duty joint arris protection.
  • Accommodates larger gap sizes easily.
  • Incorporates plate dowels for efficient load transfer between adjacent concrete slabs.
  • Continuous concrete ties securely anchor the joint into the slab along its length.
  • Resistant to twisting caused by the impact of wheeled traffic.
  • Allows controlled horizontal slab movement, preventing random cracking.
  • Eliminate vertical movement between slabs during concrete contraction, for a level floor surface.
  • Supplied as one unit for easy handling and installation – the two sides are connected with frangible rivets which separate naturally after installation.
specifications

ALL THE DETAILS YOU NEED.

PRODUCT INFORMATION
AND DESIGN SPECIFICATIONS

Downloadable product information, technical data sheets, MSDS and architectural specifications.

CASTA WAVE JOINT® - Product Information Download PDF (1.42 MB)
Downloadable product information, technical data sheets, MSDS and architectural specifications.
CASTA WAVE JOINT® - Product Information (1.42 MB)
SPECIFICATION TEXT
FOR YOUR PROJECT PLANS

Simply copy and paste this specification text
into your plans.

SPECIFICATION TEXT:

CASTA WAVE® JOINT Steel Armoured Joint installed as per specifications.

Product Range
  • Casta Wave® Joint

    Combines a narrow top plate and a distinctive triple curve design, for impact-free joint protection that’s easy to install.

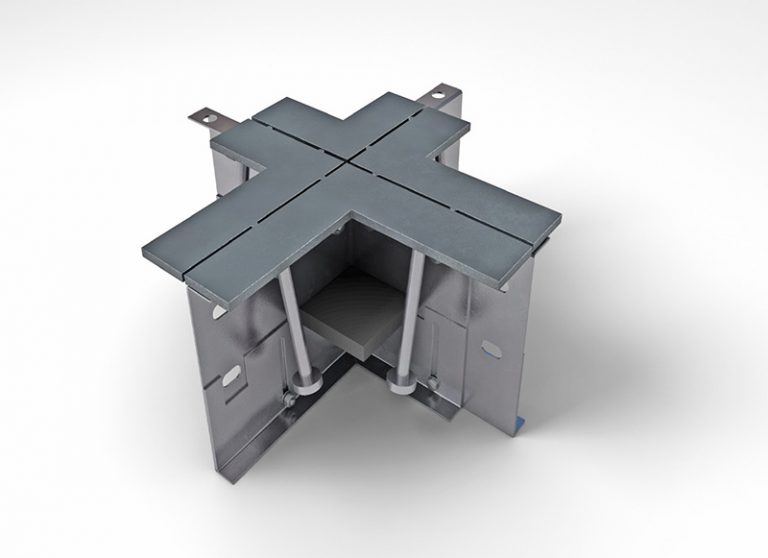

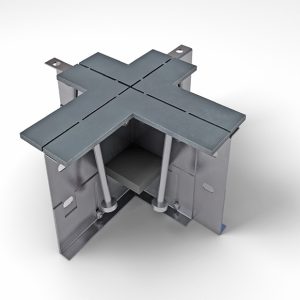

  • Casta Wave® 4-Way Joint Section

    The Casta Wave® 4-Way Joint is used in conjunction with the Casta Wave® Joint to create a 4-Way intersection.

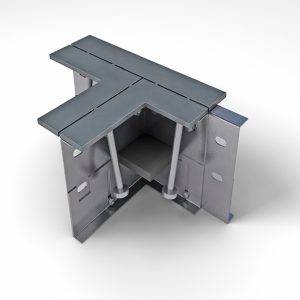

  • Casta Wave® W T-Section Joint

    The Casta Wave® T Section Joint is used in conjunction with the Casta Wave® Joint to create a 3-Way intersection.
