Armorforce® 4010 Steel Joint

Benchmark quality industry standard armoured joint.

Suitable for any application including heavy duty industrial warehouses and high traffic areas.

  • CE Certified joint, chosen for thousands of projects worldwide over more than 20 years
  • Strong, Durable and Simple to set up
  • Well known as the ‘industry standard’ armoured joint globally, this remains a popular choice for many projects due to its strength and versatility.
How it works

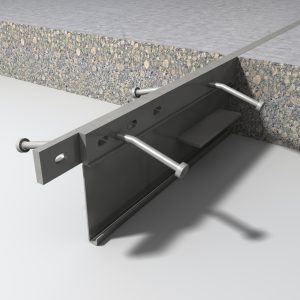

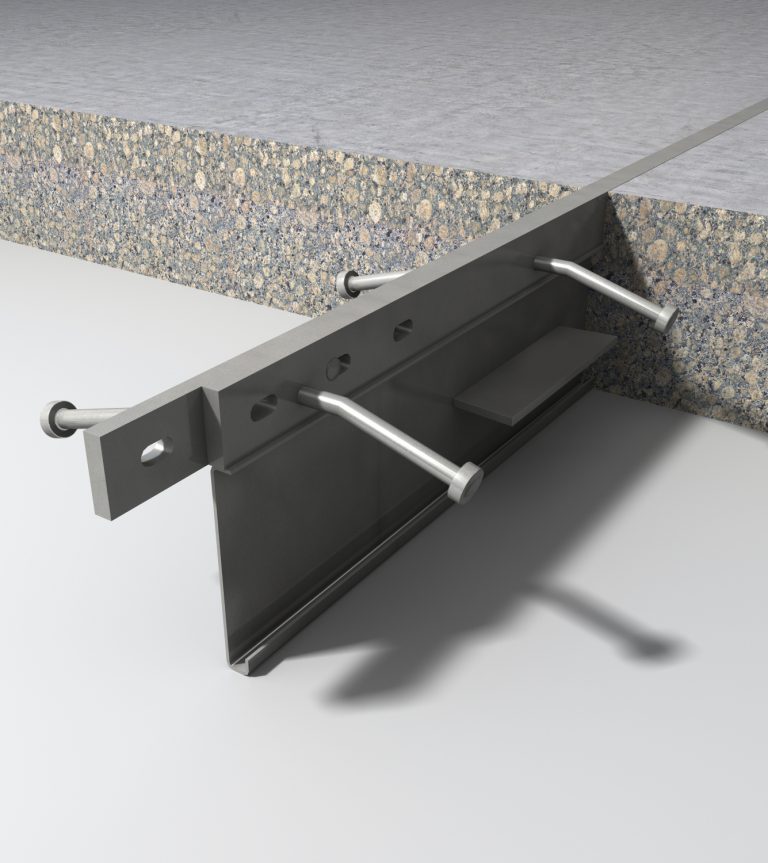

ARMORFORCE® 4010 STEEL ARMOURED JOINT

For slabs of 150-200mm, ARMORFORCE® comes with a cleverly designed universal divider plate (see image, right) With preset positions, the joint can easily be set to multiple heights on site. So, conveniently, the same product can be used for different slab depths.

This Casta armoured joint is suitable to most applications including standard and heavy duty industrial warehousing and high traffic areas.

ARMORFORCE® joints allow design and construction of floor slabs in conformance with BS EN 1991-1-1:2002 & BS EN 1992-1-1:2004 and to best practice as set out in TR34 4th edition.

ARMORFORCE® complies with the Construction Products Regulation (Regulation (EU) No. 305/2011), hold appropriate CE marking and are manufactured under the disciplines of ISO 9001:2015 and ISO 14001:2015.

key benefits
  • Universal divider plate that suits slab depths of 150-200mm.
  • Heavy duty joint arris protection.
  • Shear studs securely anchor the joint into the slab along its length
  • Resistant to twisting caused by the impact of wheeled traffic.
  • Efficient load transfer between adjacent concrete slabs with plate dowels.
  • Supplied as one unit for easy handling and installation – the two sides are connected with frangible rivets which separate naturally after installation.
  • Eliminate vertical movement between slabs during concrete contraction, for a level floor surface.
  • Allows controlled horizontal slab movement, preventing random cracking.
specifications

ALL THE DETAILS YOU NEED.

PRODUCT INFORMATION
AND DESIGN SPECIFICATIONS

Downloadable product information, technical data sheets, MSDS and architectural specifications.

Product Information Download PDF (1.24 MB)
Downloadable product information, technical data sheets, MSDS and architectural specifications.
Product Information (1.24 MB)
SPECIFICATION TEXT
FOR YOUR PROJECT PLANS

Simply copy and paste this specification text
into your plans.

SPECIFICATION TEXT:

Product details: Armorforce 4010 Steel Joint installed as per CASTA specifications.
